American DJ Pocket Pro Manual
PDF manual · 18 Pages
English
Ask a Question
Frequently Asked Questions
The Pocket Pro supports DMX-512 control (11 or 13 channel modes), sound-active mode, built-in show modes, and Master/Slave operation. It is also UC IR compatible and works with the Airstream app via a separate transmitter.
Is this answer helpful?
Yes. The fixture features an automatic voltage sensing power supply that accepts 100–240V, 50/60Hz, so it can be plugged in worldwide without a manual voltage converter.
Is this answer helpful?
The Pocket Pro includes a gobo wheel with seven replaceable gobos plus a spot and a color wheel with seven colors plus white. Gobo and color wheels support scrolling, shake, and indexed selections via DMX or remote.
Is this answer helpful?
Regularly clean external and internal optics (frequency depends on environment), brush cooling vents, and replace the fuse if blown. In heavy club use, clean external optics monthly and internal optics every 30–60 days. Always disconnect power before servicing.
Is this answer helpful?
Yes, but follow safety precautions: use the supplied clamp and safety cable, mount on structures rated to hold 10x the unit’s weight, allow proper ventilation, and perform periodic safety inspections. Overhead installation should be done by qualified personnel.
Is this answer helpful?
For LED products purchased within the United States, the Pocket Pro carries a 2-year (730 days) limited warranty covering manufacturing defects. Warranty terms require proof of purchase and an R.A. number for returns; misuse or unauthorized modifications can void coverage.
Is this answer helpful?
Use the front-panel digital display and MENU/ENTER/UP/DOWN buttons. Navigate to 'DMX Address' to set the address and 'Channel Mode' to choose 11 or 13 channels. Press ENTER to confirm each selection; hold MENU for 3 seconds to lock or unlock the display.
Is this answer helpful?
Advantages and Disadvantages
Advantages
- Compact, lightweight moving head with versatile mounting options for portable rigs.
- Multiple control modes: DMX (11/13 channels), sound-active, show mode, and Master/Slave.
- Seven colors + white and seven replaceable gobos with scrolling and shake effects.
- Auto-sensing 100–240V power, low 47W consumption, and travel-friendly design.
- Digital menu with address, channel mode, dimmer curves, target mode and firmware info.
Disadvantages
- Not rated for outdoor use; using outdoors voids the warranty.
- Internal parts are not user-serviceable—repairs require factory service.
- IR transmitter and UC IR remote sold separately for remote app control.
- Small fixture size limits raw output compared with full-size moving heads.
- Requires periodic internal optical cleaning in smoky or dusty venues.
Product Description

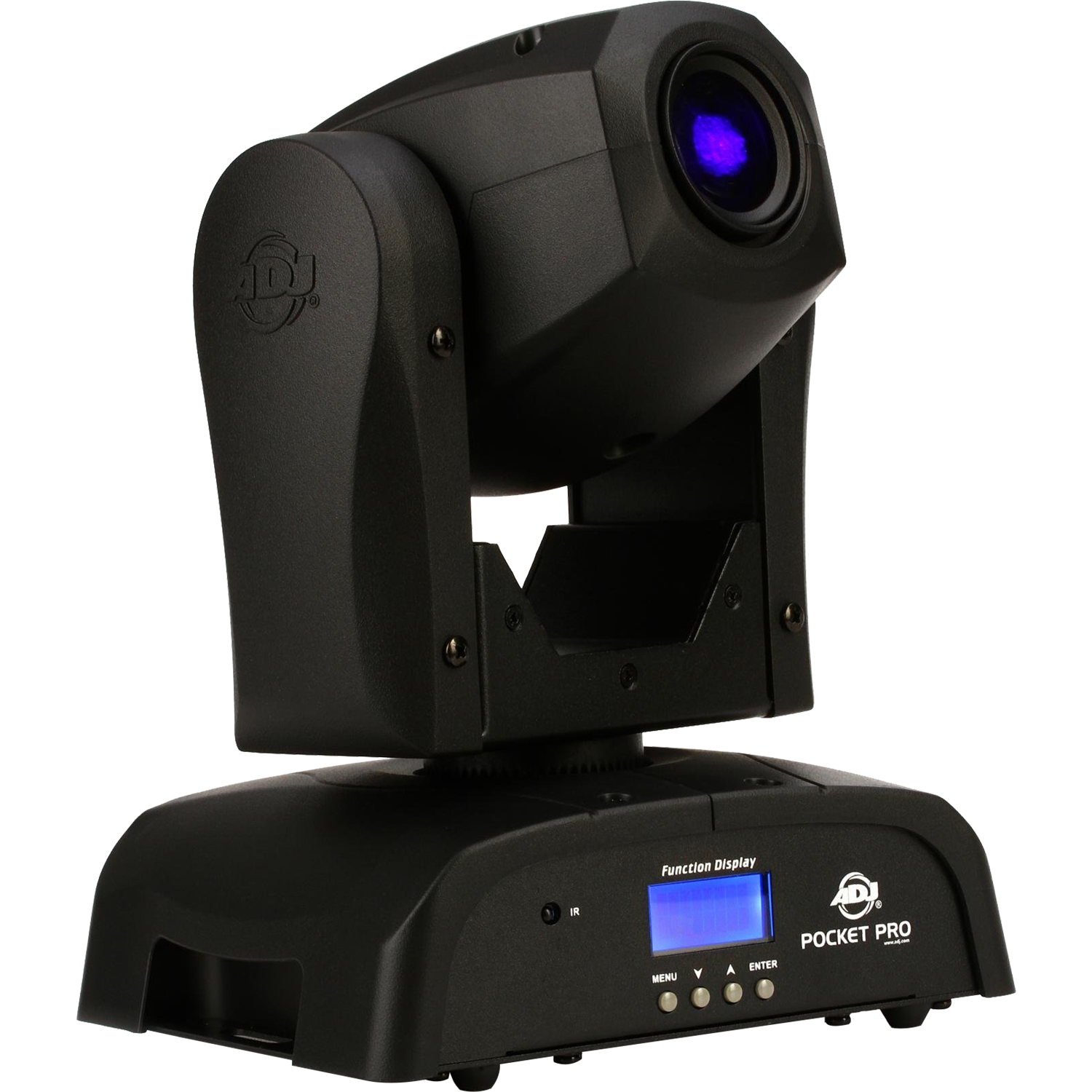

American DJ Pocket Pro — Compact Moving Head with Big Performance
The American DJ Pocket Pro is a portable, feature-packed mini moving head designed for DJs, clubs, small theaters, and mobile entertainers. Lightweight and rugged, it combines a 25W white LED engine with a seven-color wheel plus white, a seven-gobo wheel (with spot), and flexible control options including DMX-512, sound-active, and show modes. Its compact footprint and multiple mounting positions let you hang it on trussing, mount it sideways, or place it on a flat surface. An auto-sensing power supply accepts 100–240V, making it travel-friendly for international gigs.
Beyond raw brightness and effects, the Pocket Pro delivers versatile movement: pan up to 540° and tilt up to 245° (depending on channel mode), plus target-mode presets to limit sweep ranges. The fixture supports two DMX channel setups (11 or 13 channels) enabling both basic and fine 16-bit positioning for precise programming. Built-in macros, pan/tilt speed control, dimmer curves, and a comprehensive special-function channel let technicians dial in show dynamics, strobe behavior, and gobo/color scrolling.
Setup and operation are straightforward thanks to a clear digital display and an intuitive menu for DMX addressing, channel mode selection, master/slave linking, sound sensitivity, and startup behavior. Master/slave chains of up to 16 units let lights run synchronized shows without a controller. For remote convenience, the unit is UC IR and Airstream-app compatible (transmitters sold separately) so you can trigger shows, colors, gobos, and strobe from a handheld or mobile device.
Built with practical maintenance in mind, the Pocket Pro includes replaceable gobos and an easy manual focus wheel. Routine cleaning guidance and fuse replacement instructions help keep output crisp and reliable. Safety features and handling precautions are emphasized: use the supplied safety cable for overhead installs, maintain ventilation clearance, and avoid operating outdoors to preserve the warranty.
With a 2-year (730-day) limited warranty on LED products (U.S. purchases), the Pocket Pro balances creative control and rugged portability for small-to-medium production environments. Its low power draw (47W), compact dimensions, and DMX flexibility make it a go-to fixture for striking beam, gobo, and color effects without a large rig.
Notes
- Compatible with 11- and 13-channel DMX modes for flexible control fidelity.
- Works in Master/Slave for show mode sync or via DMX for full manual programming.
- Use fog or haze to maximize beam definition.
- Maintain regular cleaning of optics in smoky or dusty environments.
