Arcam AVR20 Manual
PDF manual · 2 Pages
English
Ask a Question
Frequently Asked Questions
The AVR20 supports Dolby Atmos and DTS:X decoding up to a 9.1.6 configuration and includes support for IMAX Enhanced codecs for immersive cinematic audio.
Is this answer helpful?
Yes. It features full 16-channel Dirac Live room correction for detailed acoustic calibration, improving imaging, tonal balance and bass control across complex multi-speaker systems.
Is this answer helpful?
The unit uses an ESS 9026PRO audiophile DAC to ensure high-resolution digital-to-analog performance and refined detail for both music and movie playback.
Is this answer helpful?
The AVR20 provides 7 HDMI inputs and 3 outputs (HDMI 2.0b, HDCP 2.2) with eARC, plus Wi‑Fi, Ethernet, Google Cast, UPnP, Apple AirPlay 2, Bluetooth and compatibility with the MusicLife iOS app for streaming and control.
Is this answer helpful?
Power varies by channel load: examples include 110W–175W (2 channels, 8Ω/4Ω) and around 90W–110W for seven channels driven (1kHz, 0.2% THD), providing strong, musical output for most home installations.
Is this answer helpful?
Yes. It includes RS232 and IR control for integration with home automation systems, plus physical I/O and calibration accessories commonly required for custom installs.
Is this answer helpful?
Dimensions are approximately 433 x 425 x 171 mm and net weight 16.6 kg. Mains options 110–120V or 220–240V; maximum power consumption ~1.5 kW, idle ~100W, standby <0.5W.
Is this answer helpful?
Advantages and Disadvantages
Advantages
- Supports Dolby Atmos and DTS:X up to 9.1.6 for immersive multi-channel sound.
- Full 16-channel Dirac Live room correction for precise acoustic tuning.
- ESS 9026PRO audiophile DAC and Class AB amplification for detailed, musical sound.
- 7 HDMI inputs, 3 outputs (HDMI 2.0b, HDCP 2.2) with eARC for modern video/audio sources.
- Network streaming via Wi‑Fi/Ethernet, Google Cast, AirPlay2, UPnP and Bluetooth.
Disadvantages
- Class AB design yields higher heat and power consumption compared with class-D receivers.
- Larger and heavier unit may be less suitable for compact AV furniture (433 x 425 x 171mm, 16.6kg).
- Advanced setup (Dirac, multi-channel) may require time and calibration expertise.
- No HDMI 2.1 support, limiting some next-generation gaming/video features.
- Higher power draw at full load (max consumption ~1.5kW) vs more efficient receivers.
Product Description

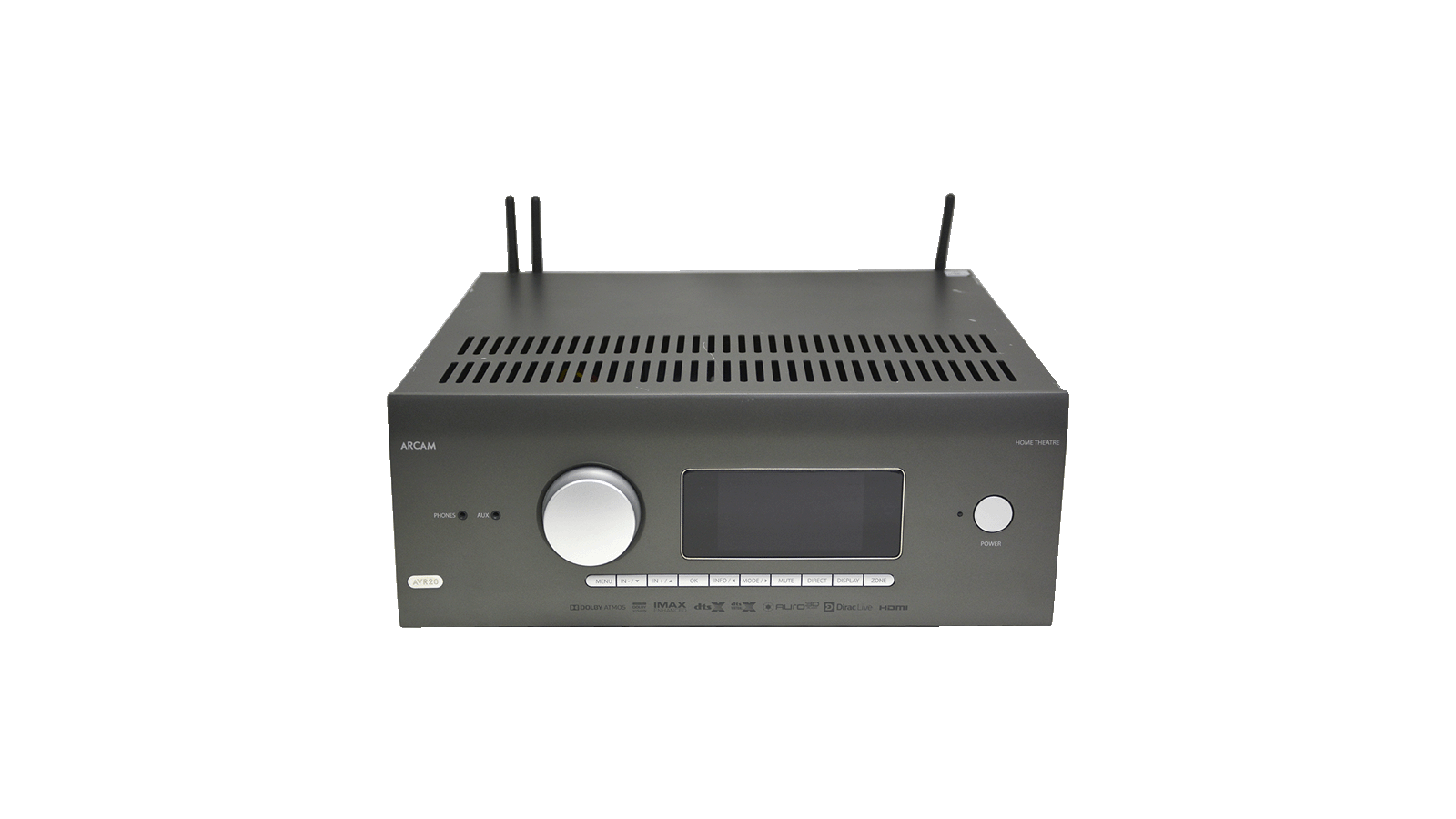

Arcam AVR20 — Powerful Class AB AV Receiver
Overview
The Arcam AVR20 is a high-performance Class AB AV receiver designed to deliver immersive, reference-quality home cinema and two-channel audio. With support for Dolby Atmos and DTS:X up to 9.1.6, IMAX Enhanced codecs, and full 16-channel Dirac Live room correction, the AVR20 blends audiophile-grade components with modern home-theater features. It pairs an ESS 9026PRO DAC with Class AB amplification fed by a toroidal transformer to emphasize transparency, musicality, and dynamic control.
Key Features and Experience

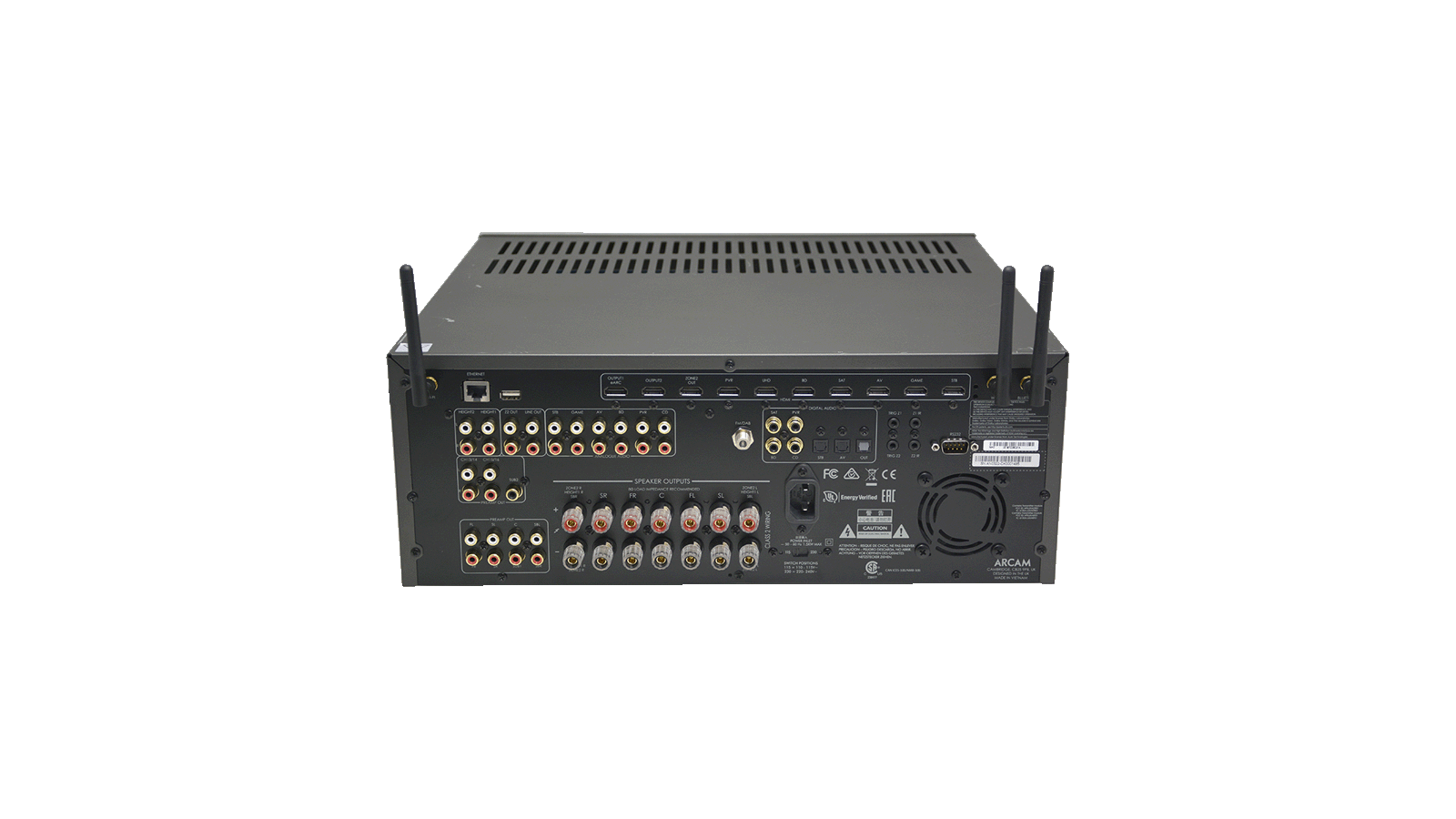

Equipped with 7 HDMI inputs and 3 HDMI outputs (HDMI 2.0b, HDCP 2.2) and eARC compatibility, the AVR20 handles 4K/UHD sources with full compatibility. Network connectivity includes Wi‑Fi and Ethernet, along with Google Cast, UPnP streaming, Apple AirPlay 2, Bluetooth and support for the MusicLife iOS app for convenient streaming and control. RS232 and IR ports make integration with custom control systems straightforward.
Audiophile credentials include the ESS 9026PRO DAC and a comprehensive Dirac Live implementation for precise room correction and 16-channel calibration. The result is a spacious, detailed soundstage with tight bass, clear midrange, and refined highs—ideal for critical listening and cinematic immersion.
Performance and Specs Snapshot
Power delivery is robust: up to 125W–190W depending on channels driven and load, and 90W–110W for seven-channel operation. Low residual noise and wide frequency response give clean, dynamic music playback. The AVR20 also includes generous connectivity and practical accessories like a calibration microphone, DAB/FM aerial, and Wi‑Fi/Bluetooth antennas.
Who Should Consider It
The AVR20 suits enthusiasts who want a balance of musical fidelity and modern home-theater features: those building a high-end multi-channel system with serious room correction needs, or listeners who prefer Class AB warmth and clarity over class-D designs.
Notes
- Full 16-channel Dirac Live provides professional-grade room tuning for complex setups.
- ESS 9026PRO DAC supports high-resolution sources and improved digital-to-analog fidelity.
- Includes legacy and modern control options (IR, RS232) for integration.
