Blackburn Grid Rear Light Manual
PDF manual · 2 Pages
English
Ask a Question
Frequently Asked Questions
Press the power button once to turn the light on, click the button to cycle through modes, and hold the button for one second to turn it off. The light restarts in the last used mode.
Is this answer helpful?
The light is USB rechargeable and ships with a short USB‑A to USB‑C charging cable. The fuel gauge flashes while charging and shows a steady green LED when fully charged.
Is this answer helpful?
Modes include Solid (40 lumens, ~1.5 h), Pulse (30 lumens, ~4 h + 2 h Auto‑Eco), Strobe (20 lumens, ~7.5–8.5 h + 2 h Auto‑Eco), and Eco (20 lumens, ~20 h). Auto‑Eco provides extra runtime after Pulse or Strobe cycles.
Is this answer helpful?
Mounting uses a flexible silicone strap that loops around the bar or post and hooks into the light body. It fits most handlebars, seatposts, seatstays, racks, and bag light loops without tools.
Is this answer helpful?
Do not aim the light directly into eyes; it’s very bright. Keep small parts away from children to avoid choking hazards. Regional warnings and compliance info (e.g., FCC) are provided on the product.
Is this answer helpful?
Package contents include a LiPo battery installed in the unit, one USB‑A to USB‑C charging cable (approx. 28–28.5 cm), and one silicone mounting strap.
Is this answer helpful?
The Grid provides strong visibility, but local laws vary; in some regions you may still need a British Standard or other certified primary cycle light in addition to this rear light.
Is this answer helpful?
Advantages and Disadvantages
Advantages
- Multiple modes (Solid, Pulse, Strobe, Eco) for flexible visibility and runtime
- Compact USB‑C rechargeable design with visible fuel gauge and steady green when fully charged
- Tool‑free silicone strap mount fits handlebars, seatposts, racks, and bag loops
- Auto‑Eco feature automatically extends runtime after Pulse/Strobe modes
- Includes LiPo battery and short USB charging cable for immediate use
Disadvantages
- Brightest 40-lumen solid mode has relatively short runtime (~1.5 hours)
- Not a replacement for region-specific required cycle lighting in some jurisdictions
- Contains Bisphenol A warning for certain regions which may concern some buyers
- Silicone strap can wear over long-term heavy use and may need replacement
- Limited cable length (around 28–28.5 cm) may be inconvenient for some charging setups
Product Description

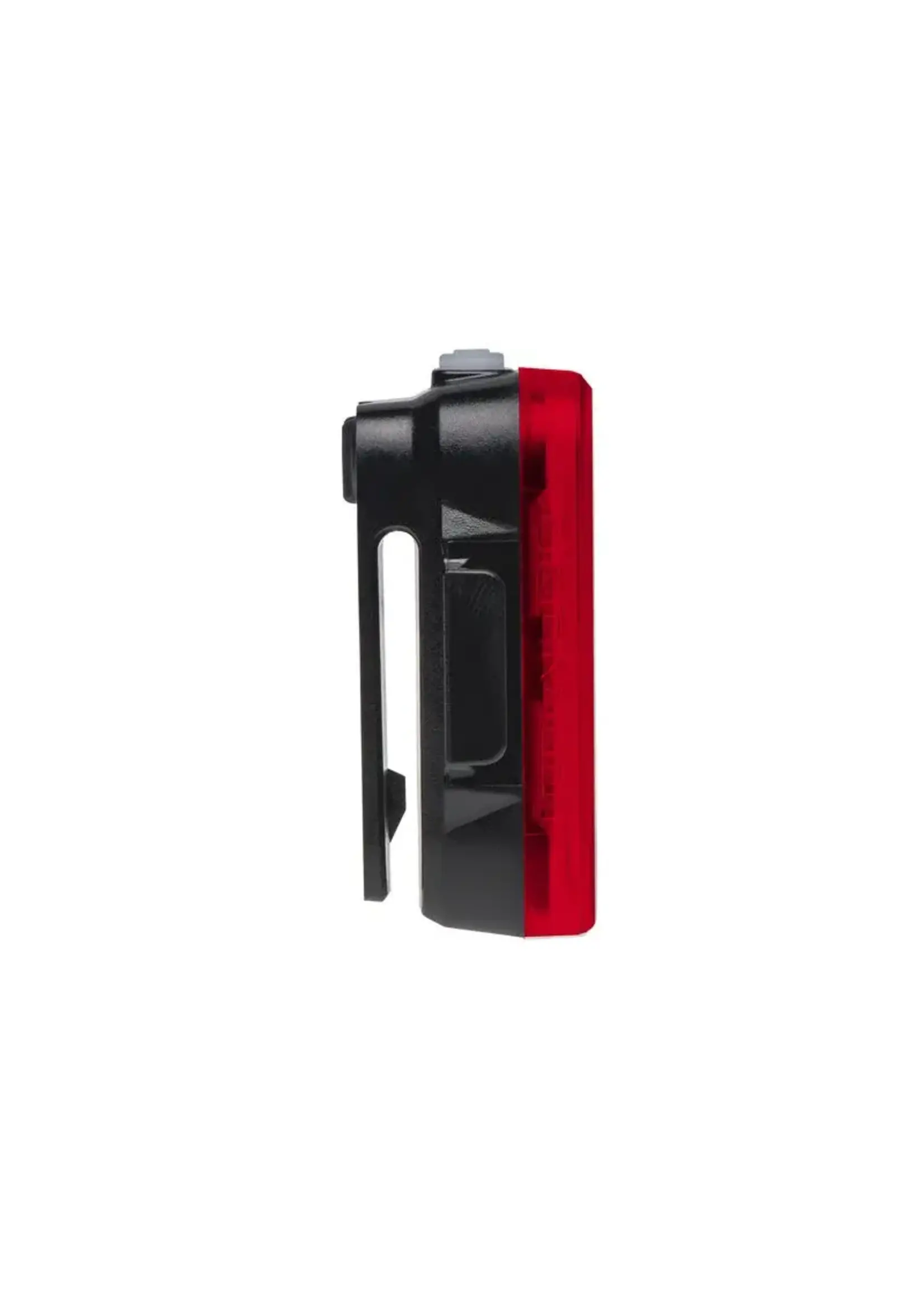

Blackburn Grid Rear Light Manual — Compact, Reliable Rear Light
The Blackburn Grid Rear Light is a USB-rechargeable bike taillight designed for everyday riders who want a straightforward, durable, and visible rear light. Small and easy to mount, the Grid offers multiple modes, a clear fuel gauge built into the power button, and USB charging for quick top-ups. It ships with a LiPo battery, a short USB-A to USB-C charging cable, and a flexible silicone strap that fits most handlebars, seatposts, seatstays, racks, and bag loops.
This light emphasizes practicality: push to power on, click to cycle modes, and hold for one second to power off. It remembers the last used mode and will restart in that mode. The fuel gauge uses colored LEDs to indicate battery level and flashes while charging; when fully charged the button glows steady green. The included cable is compact, and the silicone strap makes installation tool-free and adaptable.
Performance-wise, the Grid Rear Light balances brightness and runtime across four primary settings. The brightest solid mode delivers 40 lumens for shorter bursts, while Pulse and Strobe provide longer visibility and extend runtime. An Auto-Eco feature automatically switches to an energy-saving Eco mode after Pulse or Strobe run times end, adding extra hours of operation. The Eco mode provides extended runtime for commuting or long rides when maximum brightness isn’t required.
Safety and compliance details are included on the unit: the light is very bright so it should not be aimed into eyes, it carries regulatory statements (including FCC compliance), and notes about materials and warnings relevant to certain regions. The light is intended as a supplemental cycling visibility device and—where applicable—should be used alongside region-specific standards for cycle lighting.
Overall, the Blackburn Grid Rear Light is aimed at cyclists seeking a compact, reliable, and easy-to-use rear light with multiple output modes, a visible battery indicator, tool-free mounting, and convenient USB charging. It suits commuters, urban riders, and anyone who wants a dependable backup light that’s simple to operate.
Notes
- Includes LiPo battery, short USB-A to USB-C cable, and silicone strap.
- Fuel gauge indicates charge; steady green = fully charged.
- Auto-Eco extends runtime automatically after Pulse/Strobe.
- Avoid pointing directly into eyes; keep away from small children due to choking hazard.
- Fits most bike mounts and accessory loops.
