D-Link GO Easy Desktop Gigabit Switch, 8x RJ-45 Manual
PDF manual · 20 Pages
English
Ask a Question
Frequently Asked Questions
Each RJ-45 port supports 10/100/1000 Mbps auto-negotiation and full duplex at gigabit speeds, allowing up to 2000 Mbps per port in full-duplex mode when connected to compatible devices.
Is this answer helpful?
No. The GO Easy switch is an unmanaged, plug-and-play device. Connect the included power adapter and Ethernet cables; auto-negotiation and Auto-MDI/MDIX handle speed and cable-type configuration automatically.
Is this answer helpful?
The switch implements IEEE 802.3az EEE plus proprietary D-Link Green features. It reduces power on ports with no link, and detects cable length to lower power for short runs, conserving energy without disrupting active connections.
Is this answer helpful?
Yes. Any of the gigabit ports can be used for uplinks to a server or network backbone using Cat5e or better cabling. For longer distances or fiber uplinks, a separate media converter or managed switch with SFP ports is required.
Is this answer helpful?
Use 4-pair UTP Cat5e or better (Cat6 recommended) to achieve reliable 1000BASE-T performance. Cat5 may work but Cat5e/6 reduces errors and ensures full gigabit throughput.
Is this answer helpful?
The 8-port model supports up to 8K MAC addresses; the 5-port model supports up to 2K MAC addresses, which is sufficient for typical small networks but limited for large deployments.
Is this answer helpful?
This model is designed as a desktop unit with rubber feet and an external power adapter. It lacks built-in rack ears and is best used on a shelf or desk; rack installation would require third-party mounting solutions.
Is this answer helpful?
Advantages and Disadvantages
Advantages
- Eight 10/100/1000 Mbps auto-negotiating RJ-45 ports for full gigabit connectivity.
- Energy-efficient features (IEEE 802.3az, link-status and cable-length power savings).
- Plug-and-play installation with Auto-MDI/MDIX and clear LED status indicators.
- Jumbo frame support (9216 bytes) and store-and-forward switching for improved throughput.
- Compact desktop form factor with external power adapter for flexible placement.
Disadvantages
- Unmanaged switch — lacks VLANs, QoS configuration, and advanced management features.
- Small MAC table compared to managed switches (8K for 8-port variant), limiting large networks.
- External power adapter could be less convenient than internal PSU for rack deployments.
- No SFP or fiber uplink options for long-distance backbone connections.
- Basic cooling and ventilation requirements mean placement options are somewhat constrained.
Product Description
D-Link GO Easy Desktop Gigabit Switch, 8x RJ-45 Manual

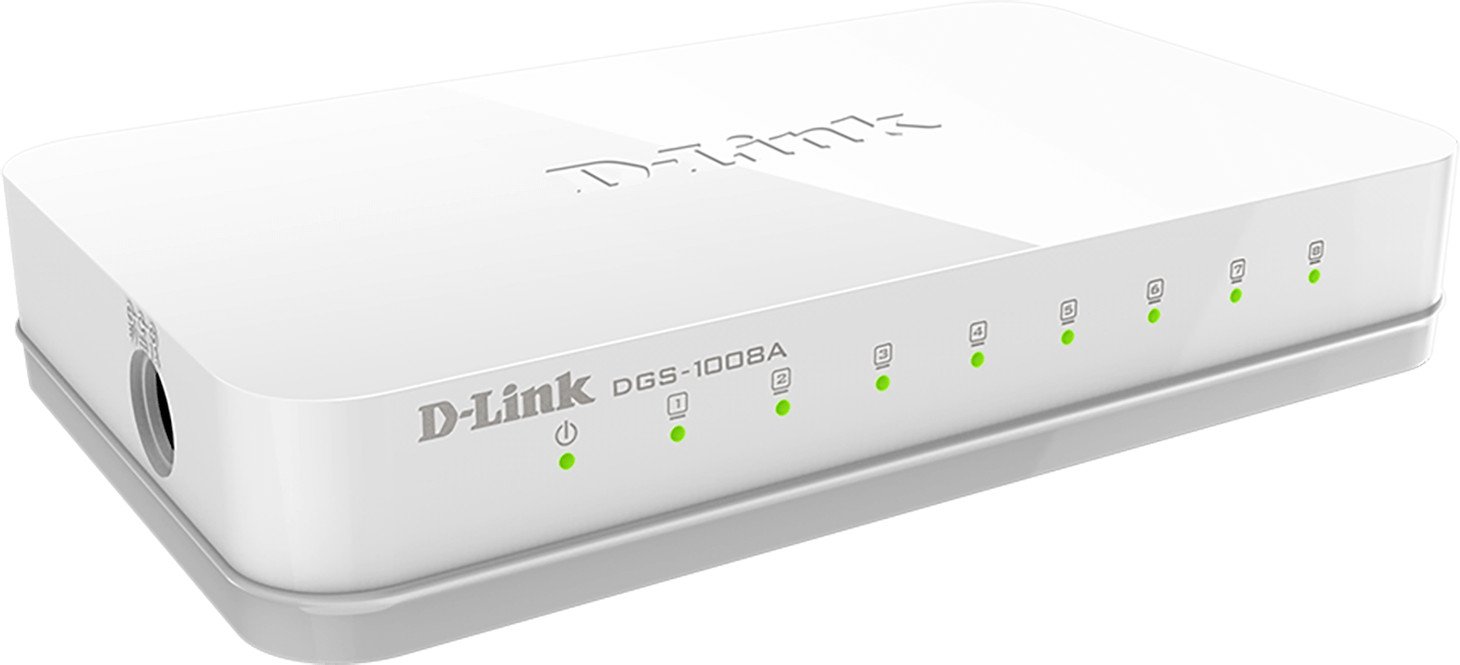

The D-Link GO Easy Desktop Gigabit Switch (8x RJ-45) is a compact, plug-and-play network device designed to bring reliable gigabit connectivity to small offices, home labs, and edge network segments. With eight auto-negotiating 10/100/1000BASE-T ports and full wire-speed switching, this desktop switch provides a straightforward way to expand wired networks without complex setup. Its small footprint and external power adapter make it easy to place on a desk or shelf while connecting multiple PCs, printers, NAS devices, or uplinks to a backbone switch.
Built around store-and-forward switching and a 128 KB RAM buffer, the switch supports low-latency, full-duplex traffic up to 2000 Mbps per port in full-duplex mode, and provides jumbo frame support (up to 9216 bytes) for improved performance with large data transfers. The switch’s auto-MDI/MDIX capability removes the need for crossover cables, and IEEE 802.3x flow control (full duplex) plus backpressure control (half duplex) help manage congestion. Two product variants (5-port and 8-port) offer differing MAC table sizes (2K for 5-port; 8K for 8-port) to suit small network needs.
Energy efficiency is a highlight: D-Link Green Technology includes IEEE 802.3az Energy-Efficient Ethernet (EEE), link-status power saving, and cable-length detection to reduce power used by idle ports or shorter runs. This yields lower power consumption and cooler operation without sacrificing compatibility with 10/100/1000 Mbps devices. LEDs for Power, Link/Act and Speed provide clear status at a glance, and the external AC-to-DC adapter simplifies replacement and regional power compatibility.
Installation is simple—attach rubber feet for stability, plug in the included power adapter, and connect devices with appropriate Cat5/5e cables (Cat5e recommended for gigabit). The switch supports common Ethernet topologies and can be used to uplink to servers or backbone switches, connect end nodes, or attach to other hubs/switches. Safety notes advise proper grounding, ventilation, and ESD precautions.
Overall, the D-Link GO Easy Desktop Gigabit Switch, 8x RJ-45, is a no-nonsense, cost-effective solution for expanding wired network capacity where unmanaged, high-speed ports and energy-saving features are desired.
Notes
- Supports IEEE 802.3az EEE and power saving by link status and cable length.
- Auto-negotiation and Auto-MDI/MDIX simplify cabling and speed/duplex matching.

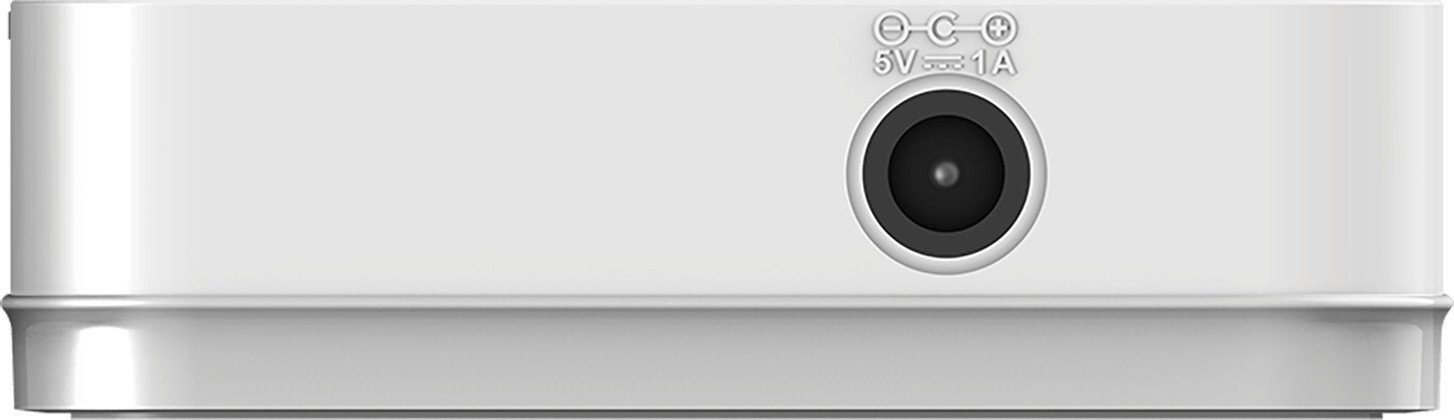

- External power adapter (AC-DC 5V/1A) and compact dimensions make placement flexible.
- Operating range: 0°C–40°C; store: -10°C–70°C; CE Class B EMI compliance.
