Einhell TC-DW 225 Electric Wall/Ceiling Sander incl. Case Manual
PDF manual · 88 Pages
English
Ask a Question
Frequently Asked Questions
The sander is intended for sanding plaster-finished drywalls, ceilings and interior walls, removing wallpaper residues, paint, coverings, adhesive residues and loose plaster. It can also be used for light floor sanding. It is designed for consumer/home renovation use, not heavy commercial or industrial applications.
Is this answer helpful?
Key specs: 230–240 V ~ 50 Hz, 600 W power, sanding surface Ø215 mm, abrasive size Ø225 mm, no-load speed 600–1500 min⁻¹, telescopic tube 1100–1650 mm, weight ~3.6 kg, M6 spindle thread. Noise and vibration values comply with EN 60745.
Is this answer helpful?
The sander has a dust extraction mount; the supplied suction hose connects to the sanding pad so dust is drawn through the abrasive. For health and cleaner results, using a dust extractor or vacuum is strongly recommended and considered mandatory for safety.
Is this answer helpful?
Sanding paper attaches via hook-and-loop (Velcro) for quick replacement—ensure extraction holes align with the pad. Speed is adjusted with the rotary speed controller: turn toward '+' for higher RPM and '-' for lower RPM.
Is this answer helpful?
Wear eye protection, a dust mask and hearing protection. Do not sand materials containing asbestos or lead-containing paints. Disconnect the mains before adjustments or maintenance, and avoid eating, drinking or smoking in the work area.
Is this answer helpful?
Unplug before cleaning. Keep vents and housings dust-free, wipe with a damp cloth and soft soap, avoid solvents, and ensure no water enters the tool. Clean after each use. Carbon brush inspection or replacement must be done by a qualified electrician if excessive sparking occurs.
Is this answer helpful?
The consumer warranty typically lasts 24 months from purchase and covers defects due to material or manufacturing faults. It does not cover damage from misuse, incorrect installation, normal wear (consumables like sanding paper or wear parts), or commercial use. Register defects via the manufacturer service portal with proof of purchase.
Is this answer helpful?
Advantages and Disadvantages
Advantages
- Powerful 600 W motor suitable for drywall and light floor sanding
- Telescopic tube (1100–1650 mm) and two-axis swivel pad for comfortable overhead work
- Integrated dust extraction port and supplied suction hose for cleaner operation
- Variable speed control (600–1500 rpm) to match grit and material
- Quick abrasive changes via hook-and-loop fastening and ergonomic handles
Disadvantages
- Not designed for heavy commercial, trade, or industrial use
- Sound pressure level (~84 dB(A)) requires hearing protection
- Vibration value (a_h = 3.03 m/s²) may cause hand-arm fatigue on long jobs
- Carbon brushes and certain maintenance tasks require a qualified electrician
- Some consumables (abrasive paper, sanding pad) are wear parts and need replacement
Product Description
Einhell TC-DW 225 Electric Wall/Ceiling Sander incl. Case Manual

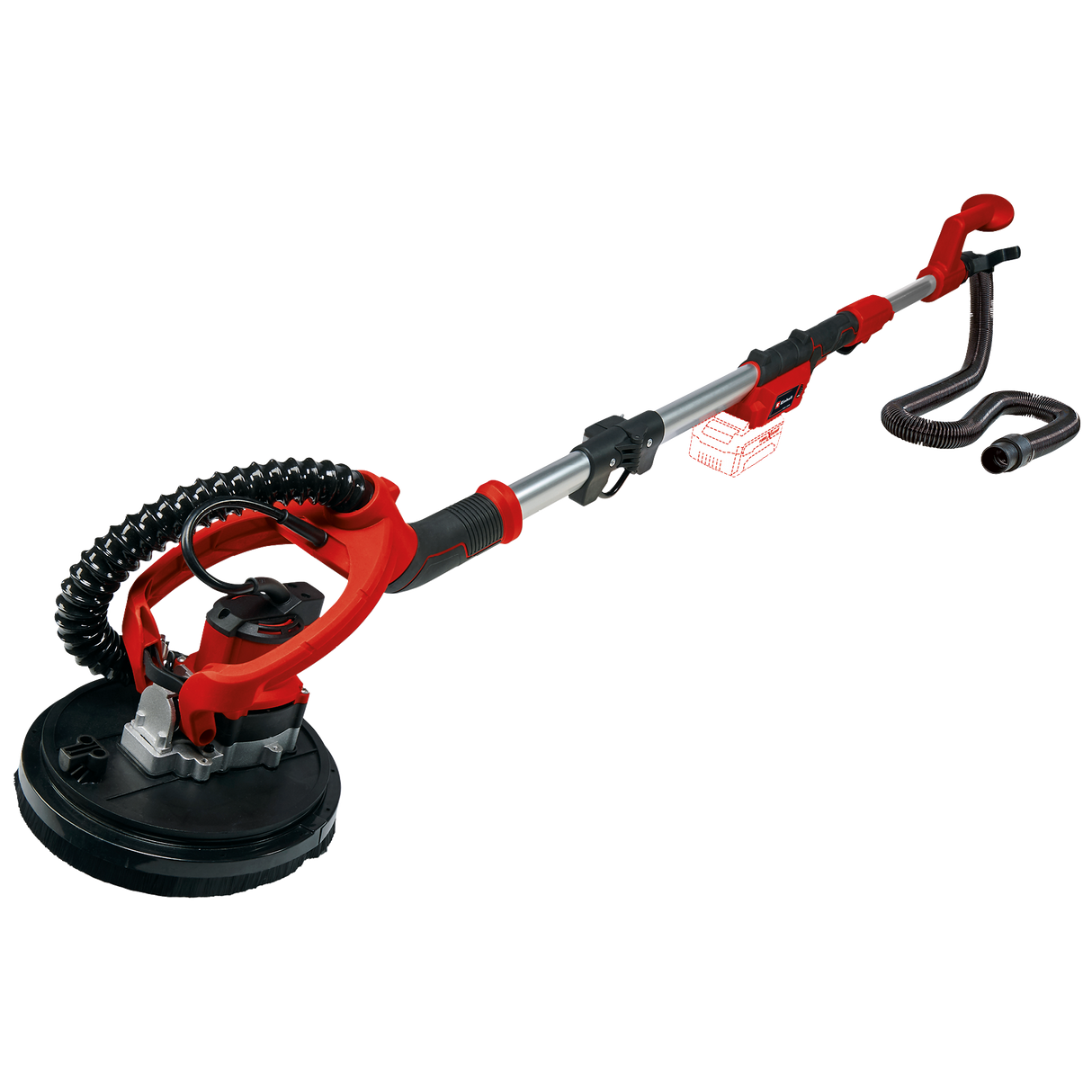

The Einhell TC-DW 225 Electric Wall/Ceiling Sander is a versatile drywall power sander designed for comfortable interior sanding of walls, ceilings and floors. Powered by a 600 W motor, it features a 215 mm sanding surface and accepts Ø225 mm abrasive discs. An adjustable telescopic tube (1100–1650 mm) and a two-axis swivel sanding pad make overhead and tight-space sanding easier and more accurate. Variable speed control (600–1500 rpm) helps match sanding aggressiveness to the job, while a hook-and-loop fastening system allows quick abrasive changes.
Equipped with an integrated dust extraction mount and supplied suction hose, the sander extracts dust through the sanding pad for cleaner operation. The tool includes ergonomic handles and an additional grip for improved control. Safety features and user conveniences include an on/off switch with locking button for continuous operation and a locking hook for transportation and storage. The unit weighs approximately 3.6 kg and uses an M6 spindle thread for accessories.
Practical for DIYers and home renovators, the TC-DW 225 is intended for sanding plaster-finished drywalls, removing wallpaper residues, paint, adhesive and loose plaster, and for light floor sanding. It's not intended for heavy commercial or industrial use; warranty conditions reflect consumer-grade application. The package typically includes the drywall sander, abrasive paper, suction hose, and safety information.
Maintenance is straightforward: keep vents and housings clean, wipe with a damp cloth (avoid solvents), and have carbon brushes checked by a qualified electrician if excessive sparking occurs. Noise and vibration comply with EN 60745 standards (sound pressure ~84 dB(A), vibration a_h = 3.03 m/s²); wearing hearing protection, eye protection and a dust mask is strongly recommended. For disposal, follow local recycling regulations and do not discard as household waste.
Notes:
- Always verify mains voltage matches the rating plate before use and disconnect power before adjustments or maintenance.
- Use dust extraction for health and cleaner performance; align abrasive holes with the sanding pad for optimal suction.
- Observe the telescopic tube "Max" mark; do not extend beyond it.
- The guarantee period is typically 24 months for consumer use; commercial use may void warranty.
