Xiaomi Mi Band 2 Activity Tracker Manual
PDF manual · 3 Pages
English
Ask a Question
Frequently Asked Questions
Install the Mi Sport app from the app store or scan the app QR code, log in, open the app’s pairing section, wait for the band to vibrate and appear onscreen, then tap the tracker to confirm pairing.
Is this answer helpful?
The Mi Band 2’s OLED display cycles to show the current time, step count, and heart rate. Tap the tracker to move between those displays after pairing with the Mi Sport app.
Is this answer helpful?
The band uses a 70 mAh lithium‑polymer battery. Connect the dedicated charger when the band indicates low battery; icons show charging in progress and fully charged status. Keep the charging contacts clean to ensure proper charging.
Is this answer helpful?
Yes, it has an IP67 rating, meaning it is dust-tight and protected against temporary immersion in water up to about 1 meter for short periods. It’s not intended for prolonged swimming or deep-water activities.
Is this answer helpful?
Warranty terms follow regional consumer and product quality laws. Depending on assessment, within the initial days you may request replacement, return, or repair; repair options extend within 12 months. A receipt or warranty card is required for service.
Is this answer helpful?
The Mi Band 2 requires Bluetooth 4.0 and runs with Android 4.4 or newer and iOS 7.0 or newer. Ensure your phone’s OS and Bluetooth version meet these requirements before attempting to pair.
Is this answer helpful?
Common issues include display malfunctions, missed characters, vibration failures, sync problems, physical damage to the tracker or strap, and charging cable faults. Contact service if problems persist after basic troubleshooting.
Is this answer helpful?
Advantages and Disadvantages
Advantages
- Lightweight, discreet tracker with basic OLED display for time, steps, and heart rate.
- Long battery life supported by a 70 mAh lithium‑polymer battery and BLE 4.0 connectivity.
- IP67 water resistance and broad operating temperature range for everyday use.
- Adjustable, comfortable thermoplastic elastomer strap with aluminum-alloy fastener.
- Easy setup via Mi Sport app with automatic tracking of steps, sleep, and heart rate.
Disadvantages
- Basic display and features compared to modern smartwatches; limited on-device interactions.
- Charging relies on a specific cable; cable faults can disable charging.
- IP67 rating limits prolonged water exposure; not suitable for swimming laps.
- Warranty and service procedures require proof of purchase and may vary by region.
- Some internal components contain aluminum in copper alloys that cannot be reduced currently.
Product Description
Xiaomi Mi Band 2 Activity Tracker Manual: Quick Overview

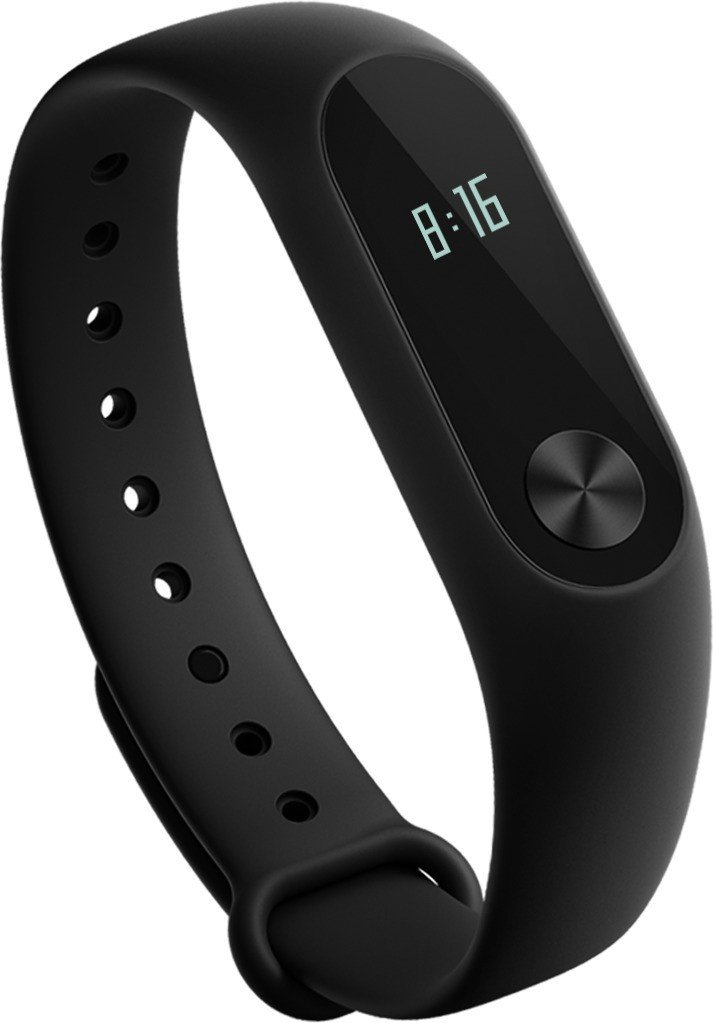

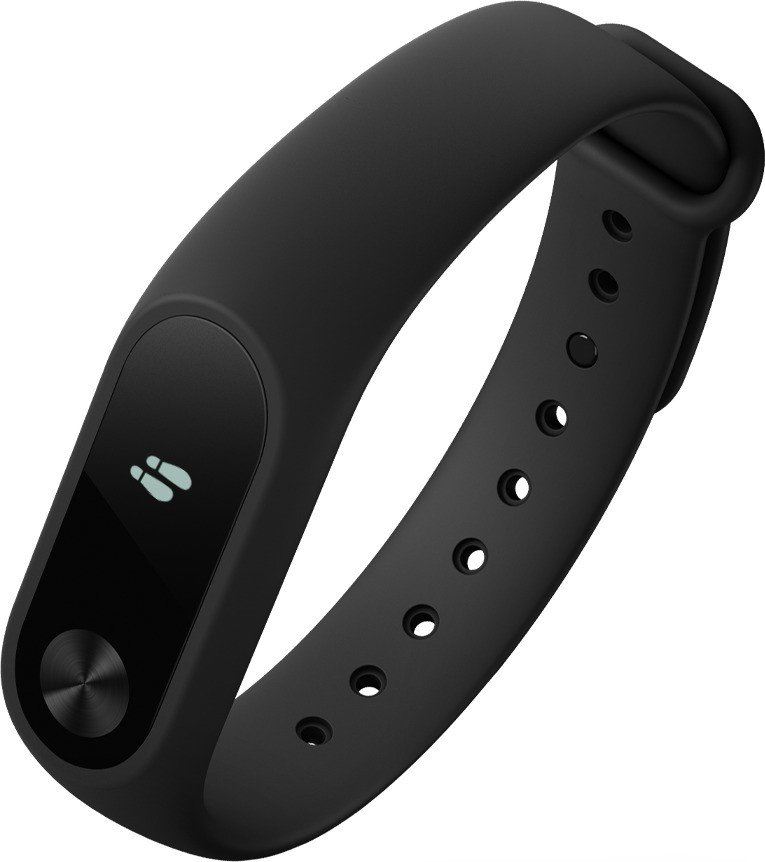

The Xiaomi Mi Band 2 Activity Tracker is a slim, wrist-worn fitness tracker that monitors steps, sleep, and heart rate while offering simple time display and long battery life. Lightweight and unobtrusive, it integrates with the Mi Sport app via Bluetooth Low Energy (BLE 4.0) for Android 4.4+/iOS 7.0+ to sync activity data, view trends, and manage device settings. Its capsule-style tracker fits into a thermoplastic elastomer strap with an aluminum-alloy fastener, adjustable to fit 155–210 mm wrists.
Key Features and Usage
Setting up the Mi Band 2 is straightforward: insert the tracker into the strap, install the Mi Sport app from the relevant app store or by scanning the QR code, log in, and pair the bracelet by confirming the vibration and tapping the tracker when it appears in the app. After pairing, the band automatically tracks steps, sleep quality, and heart rate. A single tap cycles the band’s OLED display to show time, step count, and heart rate readings.
Charging is handled via a dedicated charger; the OLED provides battery status indicators for low, charging, and fully charged states. The built-in 70 mAh lithium-polymer battery and efficient BLE connection help the band achieve extended usage between charges.
Specifications Snapshot
- Model: XMSH04HM
- Battery: 70 mAh lithium-polymer
- Water resistance: IP67
- Temperature range: -10°C to 50°C
- Strap length: 235 mm total; adjustable 155–210 mm
- Tracker weight: ~0.7 g
- Wireless: BLE 4.0
Warranty and Service Notes
Warranty and after-sales service follow applicable consumer and product-quality laws. Within the initial days and months after purchase, Xiaomi service centers offer repair, replacement, or return options depending on assessment and fault classification. Keep your proof of purchase and warranty card for service requests. Common listed faults include display issues, synchronization problems, vibration malfunctions, physical damage, and charging cable faults.
Environmental and Safety Info
The product complies with RoHS limits for hazardous substances; most components fall below regulatory thresholds. Certain copper alloy components contain aluminum that currently cannot be further reduced. Under normal operation, hazardous substance leakage is not expected.
Notes
- Ensure Bluetooth 4.0 and compatible OS on your phone before pairing.
- Keep charger and contacts clean to avoid charging issues.
- Observe the IP67 rating: dust-tight and water-resistant to 1 meter for short periods, but not for prolonged submersion.
