Yeelight Candela Leuchte Manual
PDF manual · 29 Pages
English
Ask a Question
Frequently Asked Questions
Rotate the lampshade counterclockwise to decrease brightness and clockwise to increase. Brightness ranges from 1–100%. When powered on, the lamp defaults to 100% brightness unless controlled via the app.
Is this answer helpful?
Yes. Use the Yeelight app (Android 4.4/iOS 8.0 or later) and Bluetooth 4.2 BLE to group multiple lamps and synchronize settings or scenes across them through the app's advanced settings.
Is this answer helpful?
On the base, press and hold the reset button with a pointed object for about 5 seconds until the lamp starts breathing and then turns off. This indicates the lamp has been reset to factory settings.
Is this answer helpful?
No. The LED module is not user-replaceable. Do not disassemble the lamp; if the LED fails, the entire unit should be replaced according to manufacturer guidance.
Is this answer helpful?
Use the correct voltage and standard adapters, keep the lamp away from liquids and humid environments, ensure adequate ventilation to disperse heat, regularly inspect cables and components, and avoid disassembling the device.
Is this answer helpful?
Connect a compatible USB power source to the charging port on the lamp base. Use standard adapters as recommended; the lamp uses a 5 V, 1.3 A input and a built-in 3.7 V, 2100 mAh lithium-polymer battery.
Is this answer helpful?
Yes. The product includes EU Declaration of Conformity under Radio Equipment Directive 2014/53/EU and complies with FCC Part 15 rules. Manufacturer and compliance details are provided in product documentation.
Is this answer helpful?
Advantages and Disadvantages
Advantages
- Intuitive tactile dimming: rotate the lampshade to adjust brightness 1–100%.
- Portable and rechargeable: 2100 mAh battery for cordless use.
- Smart app control and Bluetooth 4.2 BLE for grouping and advanced settings.
- Low power consumption (6.5 W) with wide device compatibility (Android/iOS).
- Compact, minimalist design suitable for bedside or ambient lighting.
Disadvantages
- LED module is non-replaceable; entire lamp must be replaced if LED fails.
- Indoor use only; not suitable for wet or highly humid environments.
- Requires Bluetooth and app for full feature set; basic functions only without app.
- Limited repairability—do not disassemble; potential electronic waste at end of life.
- Brightness defaults to 100% on power-up unless adjusted each time or managed by app.
Product Description

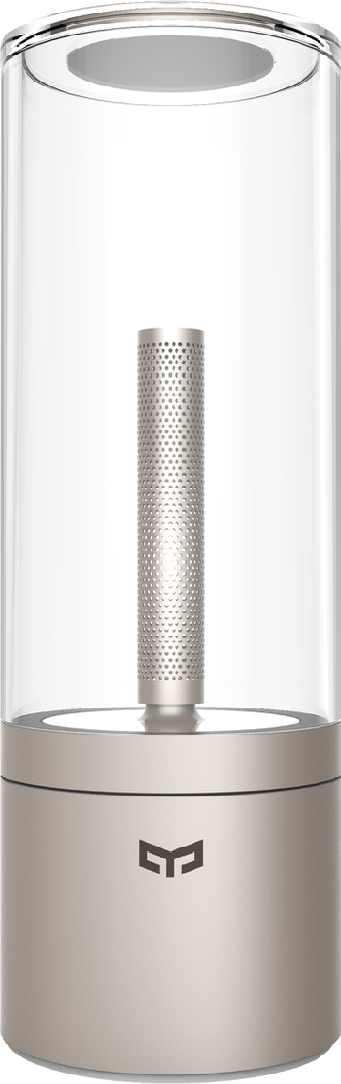

Yeelight Candela Leuchte Manual — Bright, Portable Ambience
The Yeelight Candela is a compact, rechargeable ambience lamp that combines minimalist design with smart functionality. Designed for indoor use, it features a soft lampshade, twist-to-dim brightness control, Bluetooth connectivity and app support for grouping and advanced settings. With a 2100 mAh lithium-polymer battery and a low 6.5 W draw, the Candela is ideal for bedside tables, living areas or cozy corners where adjustable, warm lighting is desired.
Key features and user experience
From the moment you unpack the lamp, operation is straightforward: toggle the power switch to the ON or smart-control position and the light defaults to 100% brightness. Physical control is intuitive — rotating the lampshade clockwise raises brightness and counterclockwise lowers it — giving a tactile, immediate way to tailor mood lighting without a phone.
For users who want more automation, the Yeelight app (Android 4.4 / iOS 8.0 or later) lets you connect via Bluetooth 4.2 BLE, group multiple Candela lamps, and access advanced settings. The lamp’s reset button on the base returns it to factory settings when needed, and an accessible USB charging port makes recharging simple.
Build, specs and safety
The product’s materials and LED module are not user-serviceable — the LED cannot be replaced and the lamp should not be disassembled. Recommended operating temperature ranges from -10 °C to +40 °C with humidity limits up to 85% RH. Standard safety guidance applies: use correct voltage and adapters, keep the lamp dry, avoid prolonged exposure to its LED output at close range, and ensure adequate ventilation to dissipate heat.
Practical scenarios
The Yeelight Candela works well as a portable accent light for reading nooks, ambient lighting for dinner or parties when grouped with other units, and as a bedside lamp offering both tactile control and app-based automation. Its modest power draw and rechargeable battery make it convenient for temporary outdoor-protected use during evening gatherings, provided it’s kept away from moisture.
Notes
- The LED module is non-replaceable; if it fails, the lamp must be replaced.
- For pairing and grouping features, enable Bluetooth and use the Yeelight app.
- Follow disposal and recycling guidance to avoid environmental harm.
- FCC and EU conformity declarations are provided by the manufacturer.
Enjoy a simple, elegant mood lamp that blends physical controls with smart features for flexible ambient lighting.
